BattenLok® HS Panel

BattenLok® HS Panels

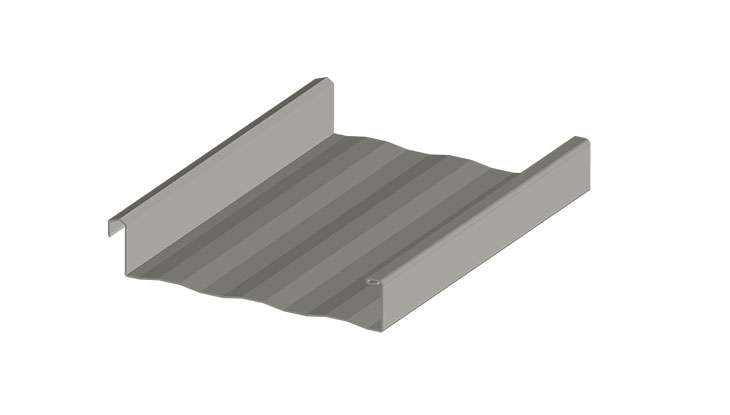

An attractive feature of the BattenLok® HS panel is the vertical leg sidelap seam that is mechanically seamed with an electric seamer for a weathertight finish. This panel features concealed clips and easy to handle 16″ or 12″ wide panels custom cut to the desired length. BattenLok HS can be installed directly over purlins or bar joists and does not require a solid substructure for support. This standing seam metal roof system has several different UL® 90 construction numbers. Heavier gauges, striations, embossing and installation over a solid deck minimize oil canning.

Available in a profile suitable for curving in the field or through a third-party vendor contracted by the customer. Please contact your District Sales Manager for order assistance.


Applications: Roof

Coverage Widths: 12", 16"

Minimum Slope: 1/2:12

Panel Attachment: Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)

Gauges: 24 (standard); 22 (optional)

Finishes: Smooth or Embossed; with Striations or Striations and Pencil Ribs

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

Clips: Low and high clips are available to allow for various thicknesses of insulation to be installed between panels and purlins.

Ratings: Numerous UL 580 construction ratings are available, as well as UL 790, Class A for external fire, numerous roof assemblies for UL 263 for internal fire and the UL 2218 Class 4 impact rating.

Colour Options:
