CFR Panel

CFR Panels

The CFR panel is an insulated metal standing seam roof panel, combining durable interior and exterior faces with a polyurethane foam core. CFR roof panels have a wide coverage area between side joint connections and a mechanically-closed standing seam that is 2” high. Between the seams is a Mesa pattern with stucco embossing for added strength and superior appearance. The CFR roof panel’s diaphragm strength can be integrated into many steel-framed building bracing designs by attaching panels with the exclusive Clinch Clip®. Adjacent roof panels are interlocked without fastener penetrations that may compromise weathertightness or necessitate costly below-roof installation.

  • Weathertight vertical side seaming and installation savings with fewer side joints to seal
  • Factory-cut panel ends, factory notching and factory-swaged ends eliminate fieldwork and erection cost
  • Factory-installed backer plates at the end laps eliminate pre-drilling for special fasteners
  • Installed from the top side to provide concealed clips and fasteners
  • Specifications

    Application: Roof

    Width: 30″, 36″, 42″

    Thickness: 2″, 2 1/2″, 3″, 4″, 5″, 6″

    Length: 9′-6″ to 53′-0″; contact Metallic for custom length availability

    Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga.; or AZ-55 aluminum-zinc coated steel with a clear acrylic coating in 24 Ga.

    Interior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.

    Joint: Mechanically seamed single lock standing seam at the exterior side joint. The interior side joint is a single tongue-on-groove interlock

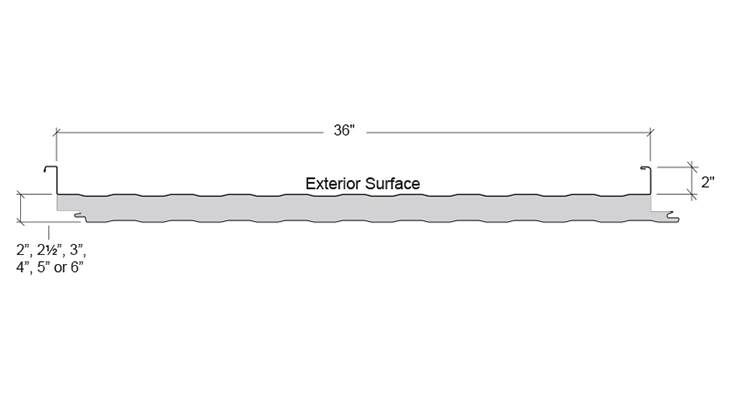

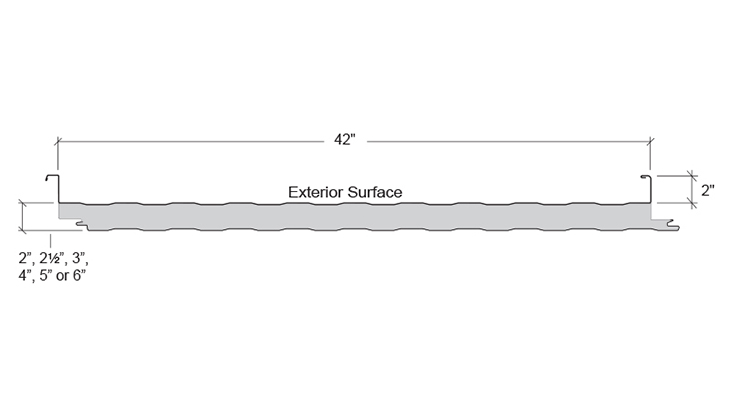

    Exterior Profile: 2″ high standing seam with a Mesa profile between the seams

    Interior Profile: Mesa profile, nominal 1/8″ deep

    Ratings: UL 90 rated, FM Approvals Standard 4471, and Florida Building code approved. Dade County NOA.

    Colour Options:
