Corrugated Panels

Corrugated Panels

The Corrugated metal wall panel is ideal for a variety of marketplaces, including residential, light commercial, agricultural and storage facilities. The Corrugated metal wall panel can be used in both vertical and horizontal applications.


Applications: Roof and Wall

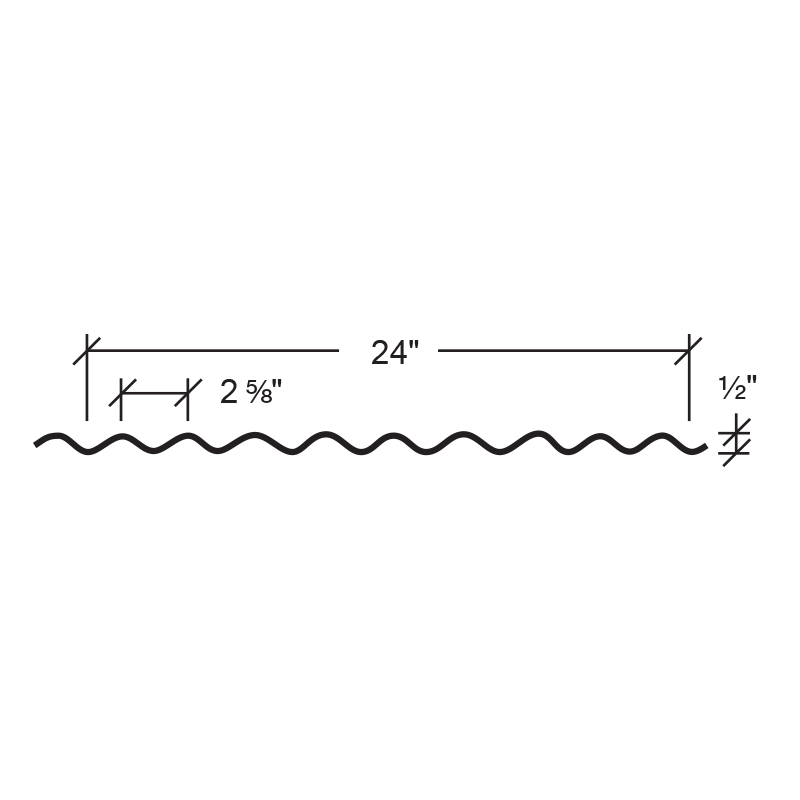

Coverage: Widths: 24"

Rib Spacing: 2 ⅝" on center

Rib Height: ½" • Minimum Slope: 3:12

Panel Attachment: Exposed Fastening System

Gauges: 29 (standard); 26 (optional)

Finishes: Smooth (standard)

Coatings: Galvalume Plus® , Signature® 200

Ratings: UL 790 external fire rating is available.

Colour Options:
