The Craftsman™ Series is a snap-on batten roof system. The pan and batten are manufactured separately to maximize design flexibility and for ease of installation at difficult hip, valley and slope change conditions. The Craftsman™ Series is a water-shedding system and can be used for roofs and mansard only when installed over a waterproofed solid substructure with a minimum roof slope of 3:12. The Craftsman™ Series design makes complicated building transitions simple without the necessity of flashings.
Snap-On Batten Roof System

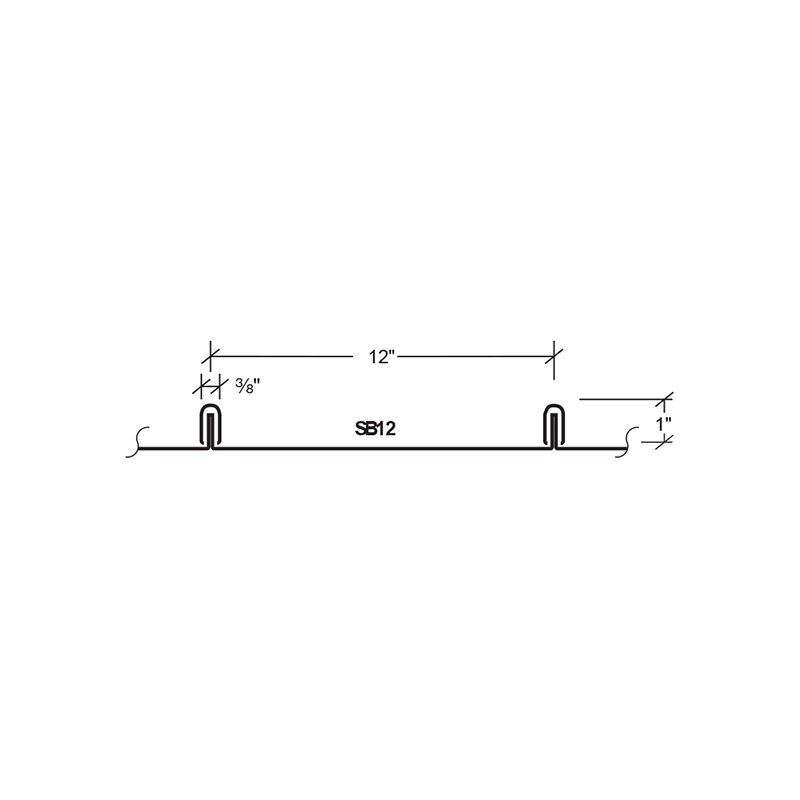

Variable Panel Width: 12″, 16½”
Variable Batten Width & Height: ⅜ X 2
Requires Solid Substrate: Plywood / OSB, Lt. Wt. Concrete, Steel Decking
Complicated Roof Slope Transitions
Roof to Fascia to Soffit with Continuous Batten
Roof Slope: 3:12
The concealed clip allows for Expansion & Contraction
