The Santa Fe® insulated metal wall panel has a flat exterior profile with a heavily embossed, stucco texture that mimics the look of masonry stucco. The metal and foam composite construction creates a rigid panel far stronger than the individual parts. This increases the span capability of the panel and reduces the need for secondary structural components. As an insulated metal panel, this product utilizes concealed clips and eliminates thermal short circuits, and offers easy and fast installation, with reduced construction labor cost. It can be used in conjunction with other CF joint profiles. For use on interior and exterior applications. Note: Not intended for exterior walls on cold storage buildings.

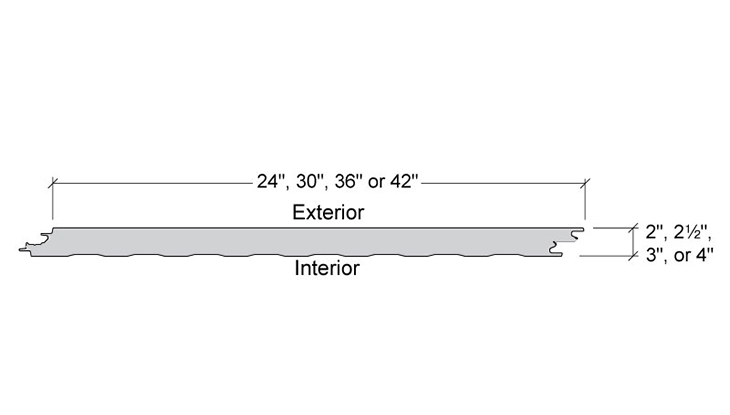

Width: 24″, 30″, 36″, 42″
Thickness: 2″, 2 1/2″, 2 3/4″, 3″, 4″, 5″, 6″
Length: 8′-0″ to 40′-0″
Exterior Face: Heavy Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga.
Interior Face: Light Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.v
Joint: Offset double tongue-and-groove with extended metal shelf for positive face fastening
Reveal: Up to 1″ reveal options in 1/4″, increments or up to 3″ reveal options in 1/4″, 1/2″, 3/4″, and 1″ increments
Ratings: Standard FM Approved Class 1 foam core and offers excellent insulating values.
